浸泡水分平衡机

Soaking moisture balancer

一、浸泡水分平衡机概述：

该设备是卧式结构，用于竹、木秸秆制浆系统的助剂吸收和浸泡、水分平衡过程。竹片、木片、棉秆等原料的浸泡、辅助药液吸收。用该设备处理后的原料吸药均匀，浸泡时间可调节。浸泡后的原料由螺旋捞料提升，自然脱水出料。原料直接送去蒸煮或者堆放发酵。

一、Overview of soaking moisture balancer：

The equipment is of horizontal structure, which is used in the process of additive absorption, soaking and water balance of bamboo and wood straw pulping system。Soaking bamboo chips, wood chips, cotton stalks and other raw materials, assisting the absorption of liquid medicine. The raw materials treated by this equipment absorb medicine evenly and the soaking time can be adjusted. Soaked raw materials are lifted by spiral fishing, and naturally dehydrated and discharged。Raw materials are directly sent to be cooked or piled for fermentation。

二、工作原理：

该设备有两个作用，一是洗涤除泥沙，二是让物料充分浸泡吸收水分或者药液。原料从进料口端落入水中，做潜水漂浮动作，液面有按压拨料辊，防止原料上浮，辅助按压潜水浸泡。吸收好助剂的原料，由螺旋提升捞出水面，自然控水后送入下一环节。

二、principle of operation：

The equipment has two functions, one is to wash and remove sediment, and the other is to fully soak the materials to absorb water or liquid medicine。Raw materials fall into the water from the inlet end and do diving and floating action. The liquid surface is provided with a pressing and shifting roller to prevent the raw materials from floating and assist in pressing and diving for soaking. The raw materials that have absorbed the additives are taken out of the water surface by spiral lifting, and then are sent to the next link after natural water control

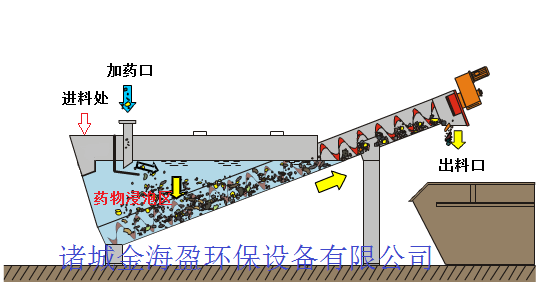

三、设备结构示意图Schematic diagram of equipment structure：
