秸秆拆解揉丝机 Straw disassembling and kneading machine

一、秸秆拆解揉丝机概述：

低温制浆技术是未来发展的趋向，有节约热源能耗、提高纤维质量，提高浆得率的优点。拆解揉丝机是我公司设备技术人员开发研制的一款锤击拆解分丝筛选设备，是新能源清洁制浆的粗备料设备。

一、Overview of straw disassembling and kneading machine：

Low temperature pulping technology is the development trend in the future.，Energy consumption of heat source can be saved、Improve fiber strength，And the fiber yield is improved。Hammer-type stalk disassembling machineIt is a dry material preparation equipment developed by our company's technicians，It is a coarse material preparation equipment for clean pulping。

二、秸秆拆解揉丝机的工作原理：

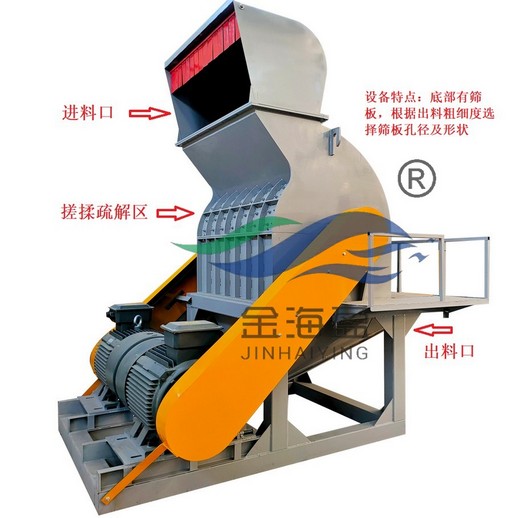

拆解揉丝机原理是利用锤片的击打、推揉力量将竹片、木片、稻草、麦草、芦苇等原料拆解、分丝细化的设备。锤片安装在中间传动的转子上，转子高速旋转产生的离心力让锤片向四周辐射张开，产生强烈带柔和的击打揉搓力量，配合设备内部类似于搓衣板的衬板反揉搓作用将原料击打撕裂分丝。设备下半部是过滤筛板，出料大小、细度由筛板孔径的大小来控制。网孔大则出料粗，网孔小则出料细。用于草料揉丝时需要配置高压引风机引力出料，防止物料被揉搓时间过长损伤纤维。配和拉料风机加快出料速度，降低设备内部温度。

二、Working principle of straw disassembling and kneading machine：

The principle of straw disassembling and kneading equipment is to disassemble, shred and refine bamboo chips, wood chips, straw, wheat straw, reed and other raw materials by using the beating and kneading power of hammer。The hammer piece is installed on the intermediate transmission rotor, and the centrifugal force generated by the high-speed rotation of the rotor makes the hammer piece radiate and spread around, generating a strong and gentle beating and kneading force, and the raw materials are beaten and torn to separate wires in cooperation with the anti-kneading effect of the lining plate similar to the clothes rubbing plate inside the equipment。The lower part of the equipment is a filter sieve plate, and the size and fineness of the discharge are controlled by the size of the sieve plate aperture. Large mesh leads to coarse discharge and small mesh leads to fine discharge.When it is used for grass kneading, it is necessary to configure high pressure induced draft fan to pull out material to prevent the material from being kneaded for too long to damage the fiber. Equipped with pulling fan to speed up the discharging speed and reduce the internal temperature of the equipment.

三、设备的优势和特点：

该设备采用双电机传动，保证设备电流的稳定性。适于多种原料的分丝：一是分解竹片、木片；二是拆解草类秸秆，将秸秆内部夹杂的尘土及芯部白膜分离出来。破坏麦秸杆外皮的光膜利于吸水；拆解后的原料吸水速度快，蒸煮熟化时间短，方便后续进入高浓磨浆机磨料。

三、Advantages and characteristics of equipment：

The equipment adopts double motor drive to ensure the stability of the equipment current.Suitable for a variety of raw materials: one is to decompose bamboo pieces, wood pieces;Second, dismantling the straw, the straw mixed in with the internal dust and core white membrane separation.Destroying the light film of wheat straw skin is beneficial to water absorption.The disassembled raw material has fast water absorption speed and short cooking and ripening time, which is convenient for subsequent entry into the abrasive of the high concentration pulping machine.
